19  Lum et al. (2013): Mapper on breast cancer expression data

19.1 The question behind the graph

The widely cited paper by Lum et al. (2013) illustrates Mapper with cancer expression data, congressional votes, and basketball statistics. We concentrate on the public GSE2034 breast cancer cohort, the independent dataset used in its cancer example. The reported non-relapse network has a Y-shaped structure with a low-ESR1 arm; the authors associate that arm with elevated chemokine expression.

Our result is a partial reconstruction with the correct patient data, not an exact replication of the published graph. We recover low-ESR1 patients and a descriptive chemokine-marker difference, but our reference graph is considerably more fragmented. The experiment also exposes a methodological issue that matters beyond this paper: when clinical outcome is a filter, outcome-pure graph regions are partly imposed by the construction.

The earlier Mapper chapter explains the algorithm. Here we focus on what is needed to make a published application reproducible: the right clinical table, explicit preprocessing, parameter translation, graph membership, and a numerical comparison that does not depend on the drawing.

19.2 Get the correct cohort and outcome

GSE2034 at NCBI GEO contains 22,283 Affymetrix probe sets measured in 286 primary tumors on platform GPL96. We download the deposited processed expression matrix rather than reprocessing CEL files. The original values are positive signal intensities, with a range of 0.1 to 157,291.8. Our analysis uses their base-two logarithms.

Three original files are needed:

Original source	What we take from it
GSE2034_series_matrix.txt.gz	Probe identifiers, GSM sample identifiers, and expression intensities
GSE2034_family.soft.gz	The named Patient clinical parameters series table
GPL96.annot.gz	Probe-to-gene annotation, dated August 9, 2016

The acquisition script records full SHA-256 hashes in sources.toml. The expression download starts with f6a99c62f0a29185; the SOFT archive with 1fa927dc72870434. The locally retained clinical table is also hashed. These are identifiers of the actual downloaded bytes, not a claim that GEO files will never change.

Important

The current sample-level characteristic is bone relapse, which is not the overall-relapse outcome used here. The overall-relapse indicator, follow-up time, and clinical estrogen-receptor status are in the separate series-level table. Its row order differs from the expression columns, so joining by row position would assign outcomes to the wrong tumors.

For example, the clinical table starts with GSM36793, whereas the expression matrix starts with GSM36777. We enforce a one-to-one match on the complete GSM identifiers and reorder the clinical records to match expression columns:

include("experiments/lum2013/scripts/common.jl")
data = load_data()  # verifies hashes, dimensions, IDs, positivity and labels

size(data.logexpr)       # (22283, 286): one patient per column
sum(data.relapse)        # 107
count(==("ER-"), data.er) # 77

The attached table has 179 patients without recorded relapse and 107 with relapse, including 50 and 27 clinical ER- patients respectively. Its clinical ER totals are 209 ER+ and 77 ER-. GEO’s narrative summary instead says 180 and 106. We retain the explicit patient-level table values and document that discrepancy. A non-relapse label means no recorded event during the available follow-up; it does not mean permanent survival.

19.3 Published settings and explicit local substitutions

The paper specifies correlation distance and two filters. Its Figure 2 caption reports centrality resolution 70, gain 3.0x, and equalization, with outcome resolution 30 and gain 3.0x. Supplementary Figure S1 gives 1,553 selected features for NKI, not an exact GSE2034 probe list.

Pipeline ingredient	Local reference analysis	Replication status
Dataset	GSE2034; all 286 deposited samples	Correct public cohort
Expression input	log2 of deposited positive intensities	Local preprocessing choice
Feature selection	Top 1,553 probe sets by sample variance	GSE2034 count/list not specified; exploratory transfer from NKI
Gene centering	None in the reference run	Additional centered runs are sensitivity checks
Pairwise distance	One minus Pearson correlation across selected probes	Matches the stated distance family
Centrality	Maximum distance from each patient to any other patient	Matches the stated formula
Equalization	Empirical centrality ranks in \([0,1]\)	Local approximation to software equalization
Cover	70 centrality intervals, 30 outcome intervals	Published resolutions; endpoint convention local
Gain	Interpret 3.0x as interval width divided by step	Assumption: adjacent overlap is \(2/3\)
Within-cell clustering	Single linkage, local first-empty-bin cutoff, 10 bins	Original software settings are not fully identified
Coloring	ESR1; separate four-marker mean	Annotation and marker aggregation are local

The top features are probe sets, not 1,553 distinct genes. We rank all deposited probe sets, including the ten controls in this reference selection; we do not silently collapse probes to genes or standardize each gene to unit variance. The exact selected list is saved in selected_probes.csv.

“Gain 3.0x” must not be passed into Uniform(expansion=3.0) and treated as a documented equivalence. For our explicit convention, interval width \(w\) and step \(s\) satisfy \(w/s=3\), so adjacent overlap is \((w-s)/w=2/3\). On \([a,b]\), with \(k\) intervals, we use

\[ w=\frac{3(b-a)}{k+2},\qquad s=\frac{w}{3}. \]

gain_cover creates those intervals through ManualCover. Closed endpoint handling and empirical-rank equalization are specified by our code; they need not coincide with the historical Ayasdi implementation.

19.4 Build the geometry before building the graph

Let \(A\) be the selected log-expression matrix, with one patient per column. Subtract the mean of each patient column and normalize that column to unit length. The dot product of two resulting columns is their Pearson correlation:

geometry = correlation_geometry(data; nprobes=1553, center_genes=false)

A = geometry.A
Z = A .- mean(A; dims=1)
Z ./= sqrt.(sum(abs2, Z; dims=1))
D = clamp.(1 .- Z' * Z, 0, 2)
D[diagind(D)] .= 0

centrality = vec(maximum(D; dims=1))

This is Pearson distance, not uncentered cosine distance. Centering each patient column for Pearson correlation is also distinct from subtracting each gene’s mean across patients, which our sensitivity analysis optionally does. One minus correlation need not satisfy the triangle inequality, so we use it as the paper’s pairwise dissimilarity and do not invoke metric-space guarantees.

Do not replace this maximal-distance centrality by eccentricity(X) from MetricSpaces: that API averages distances. The published \(L_\infty\) filter requires their maximum.

The patient-to-patient matrix has only \(286^2\) entries. We cache it and reuse its submatrices during cover refinement. This avoids repeated calculations over thousands of expression coordinates. A small adapter implements the public JuliaTDA refiner interface:

struct CachedSingleLinkage <: TDAmapper.Refiners.AbstractRefiner
    distances::Matrix{Float64}
    bins::Int
end

function (r::CachedSingleLinkage)(ids::Vector{Int})
    length(ids) == 1 && return [1]
    local_D = r.distances[ids, ids]
    tree = Clustering.hclust(local_D; linkage=:single)
    cutoff = TDAmapper.Refiners.cutoff_at_first_empty_bin(
        tree.heights, maximum(local_D), r.bins)
    Clustering.cutree(tree; h=cutoff)
end

The full definition lives in common.jl; do not redefine the struct after including that file. The integer vectors passed to the refiner identify patients. Their numeric values are never used as scalar distances.

We now use the ordinary JuliaTDA cover, refinement, and nerve pipeline:

f = geometry.rank
cover = R2Cover(collect(zip(f, data.relapse)),
    gain_cover(f; resolution=70, gain=3.0),
    gain_cover(Float64.(data.relapse); resolution=30, gain=3.0))

refiner = CachedSingleLinkage(geometry.D, 10)
M = classical_mapper(collect(1:286), cover, refiner, SimpleNerve())

graph_summary(M, data)

Nodes represent locally clustered sets of tumors. Two nodes are joined exactly when they share a patient. All 286 tumors appear in at least one node; a patient can belong to several nodes because the intervals overlap.

19.5 Actual numerical results

The script executes 54 prespecified configurations: three feature counts (500, 1,553, 3,212), three centrality resolutions (20, 35, 70), three histogram counts (5, 10, 20), and two gene-centering choices. Gain stays at the declared 3.0 convention. The five exported reference/control graphs give:

Configuration	Nodes	Edges	Components	Largest component, patients
Log2 only, 70 intervals	371	559	37	112
Log2 only, 20 intervals	104	184	8	179
Gene centered, 70 intervals	419	632	40	47
Gene centered, 20 intervals	140	238	10	170
Outcome-free control, log2 only, 70 intervals	160	278	12	271

These component sizes count unique patients, not node memberships. The reference 70-interval graph contains 215 singleton nodes; these are nodes with one patient, not necessarily disconnected vertices. At 20 intervals, all 179 non-relapse patients lie in one connected component. Such merging makes the coarser graph easier to inspect but does not certify the published Y shape.

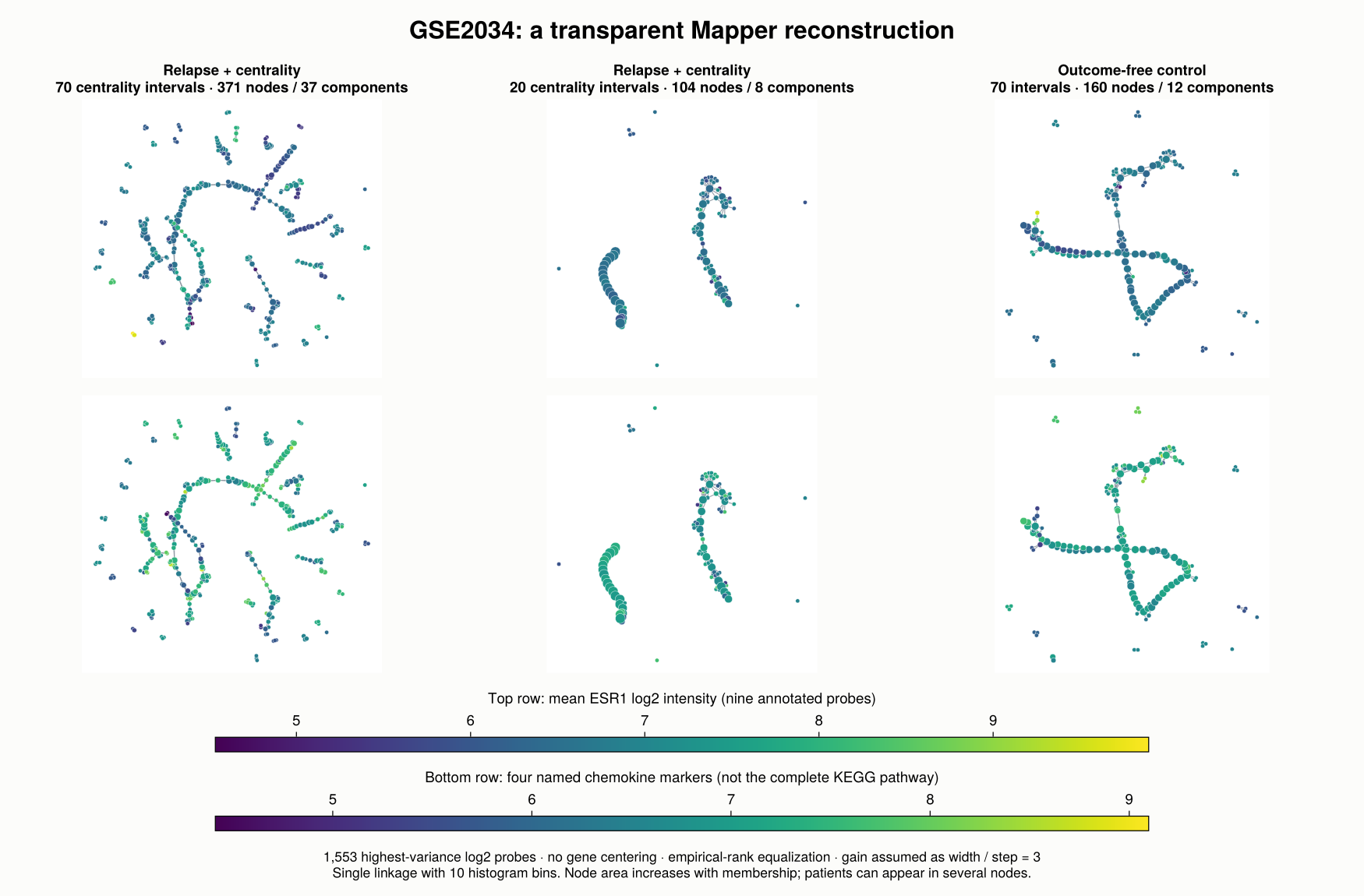

Figure 19.1: Computed GSE2034 graphs with fixed spring-layout seeds. The first two columns use overall relapse as a filter; the third removes that filter. Both rows use the same graph positions within each configuration. Colors summarize different expression quantities, so equal colors across rows do not have the same meaning.

The local graphs show low-ESR1 regions, but the reference run does not recover the published graph closely enough to identify its exact lowERHS arm. Node placement is a visualization choice, and the dense overlaps generate triangles; we do not interpret the cycle rank of the displayed graph as the first Betti number of a fully filled nerve.

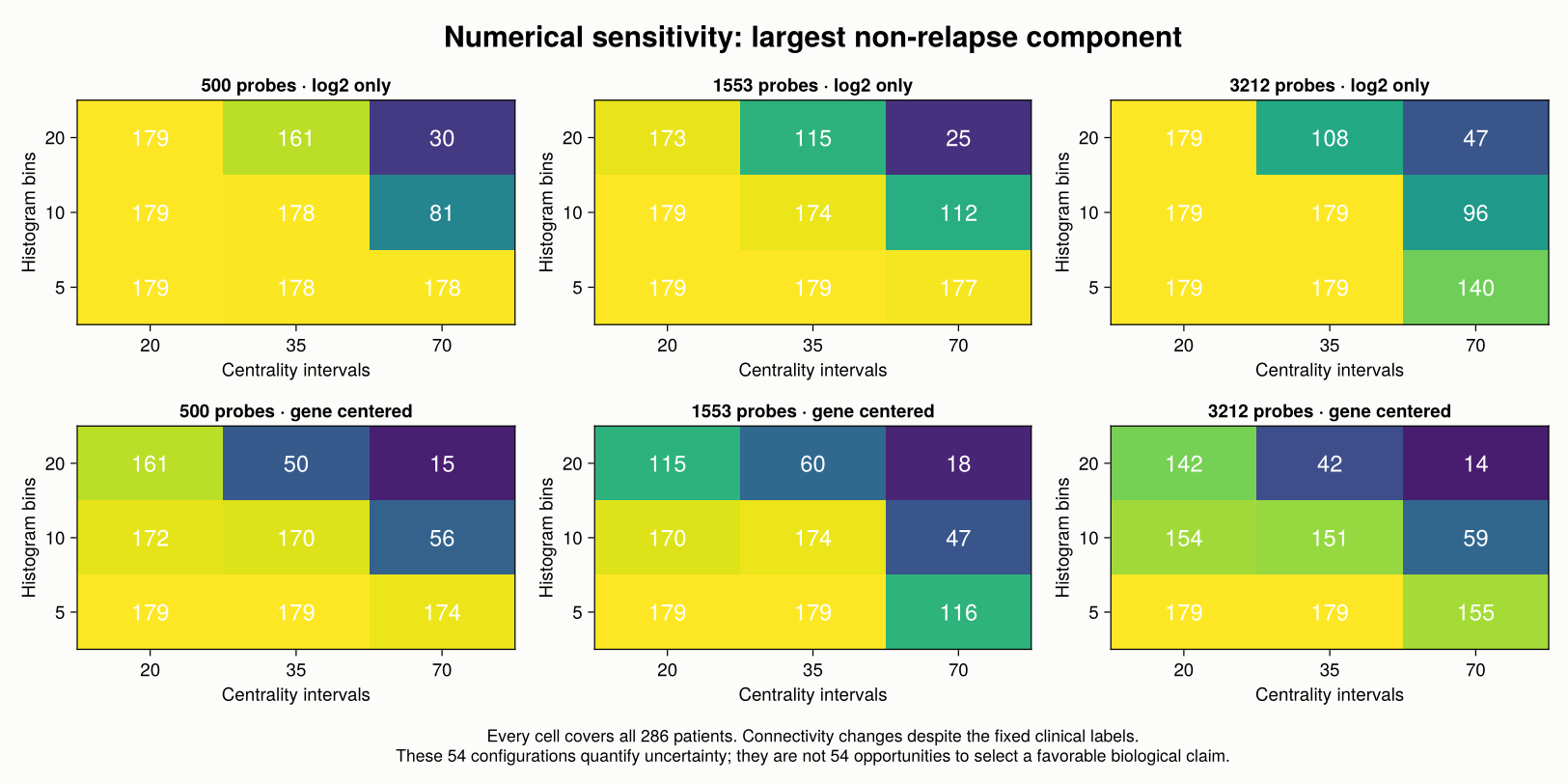

Figure 19.2: Sensitivity of connectivity to probe selection, cover resolution and local clustering. Entries are the number of unique patients in the largest non-relapse component; every configuration retains all 286 patients.

The complete sensitivity table is part of the result. Across the 54 configurations, the number of components ranges from 2 to 131, and the largest non-relapse component contains 14 to 179 patients. It records alternatives instead of selecting a drawing that happens to resemble the target.

19.6 What does the expression annotation support?

The 2016 GPL96 annotation assigns nine probe sets to ESR1. We average their log2 values for coloring. For the chemokine annotation, we average each gene’s probe values first, then weight the four named genes CCL13, CCL3, CXCL13 and PF4V1 equally. These genes use five probe sets in total. The result is a four-marker descriptive score, not the complete KEGG chemokine pathway used in the publication.

Using the independently deposited clinical ER status gives:

Clinical group	Patients	Mean ESR1	Mean four-marker score
All patients	286	6.581	6.956
ER-, relapse recorded	27	5.958	7.210
ER-, no relapse recorded	50	5.982	7.479

All expression values in this table are means on the log2 intensity scale. The ER- non-relapse group has a four-marker mean 0.269 higher than the ER- relapse group. This is directionally compatible with the reported example, but the groups and score differ from the authors’ definitions. It therefore does not reproduce their pathway enrichment test or its significance.

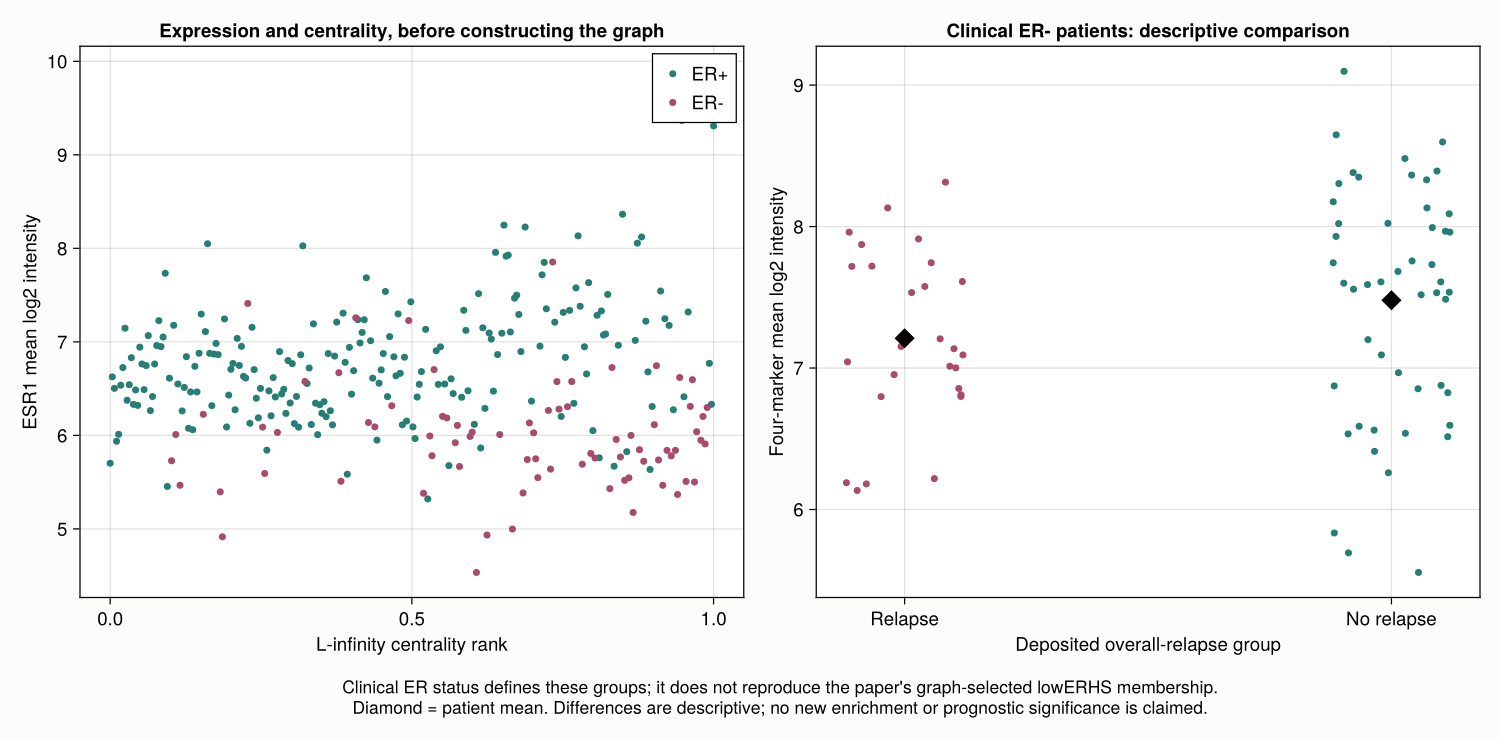

Figure 19.3: Patient-level diagnostics computed before graph coloring. Clinical ER labels define the displayed groups. The right panel uses only clinical ER- patients; diamonds show group means.

19.7 Outcome is a filter, not a prediction

Our 30-interval binary cover cannot put outcomes 0 and 1 into the same cell. Consequently every refined node is outcome-pure, and no edge can cross from a relapse node to a non-relapse node. Perfect separation of these labels is guaranteed by the cover, regardless of expression geometry.

We repeat the construction with one fixed random permutation of the 107 relapse indicators, preserving the total number of events. Nodes remain outcome-pure. This control is not a statistical significance test: it exposes the guaranteed separation. Removing the outcome lens produces mixed nodes and a 271-patient largest component. The numerical control results are retained in outcome_control.csv.

This distinction leaves Mapper useful for exploring structure within clinical groups. It prevents us from presenting a supervised construction as an independent predictor of relapse. We also do not infer a survival advantage from group means without a censoring-aware, independently validated analysis.

19.8 Checks and how to rerun

The scripts verify hashes and sample alignment before analysis. For all five exported graphs they check every potential nerve edge against membership intersection and compare every local single-linkage partition with connected components of an independently constructed distance-threshold graph. Cached Pearson distances agree with Statistics.cor to at most \(2.22\times10^{-16}\) on the checked pairs. All 54 configurations retain every patient. Repeated numerical executions produced identical SHA-256 hashes for all 26 exported CSV files; this verifies deterministic outputs for the recorded data and settings.

From the JuliaTDA workspace root:

python3 TDA_with_julia/reproductions/experiments/lum2013/scripts/download.py
julia --project=TDA_with_julia/reproductions/experiments/lum2013/environment \
  -e 'using Pkg; Pkg.instantiate()'
julia --startup-file=no \
  --project=TDA_with_julia/reproductions/experiments/lum2013/environment \
  TDA_with_julia/reproductions/experiments/lum2013/scripts/run.jl

The experiment uses a private environment with local JuliaTDA component paths; it changes no shared book or package environment. Original compressed downloads are ignored by Git and can be reacquired with the script. The environment, extracted clinical table, selected probe identifiers, node memberships, numerical tables, and precomputed figures are retained. The chapter itself performs no network requests or computations when rendered.

run_metadata.toml records Julia version, seed, Manifest hash, local package commit identifiers, dirty status, source fingerprints, annotation probes, parameters and audits. Further details are in the experiment README.

To move from this reconstruction to an exact replication, we would need the historical GSE2034 analysis matrix and selected feature list, the original equalization and clustering settings, graph-selected lowERHS membership, and the full pathway scoring definition. The current result makes those gaps visible while providing an executable analysis of the right cohort.
