Topology meets the real world

How geometry can help us analyse finite metric spaces

Guilherme Vituri F. Pinto*, Laura R. Gambera**

*Head of Intelligence at Argus Solutions

**Data Scientist at Argus Solutions

Data in the wild

In many cases, real world datasets are tables and can be seen as a finite space \(X \subset \mathbb{R}^n\) for some \(n\), with some choice of metric to it.

   Sepal.Length Sepal.Width Petal.Length Petal.Width
1           5.1         3.5          1.4         0.2
2           4.9         3.0          1.4         0.2
3           4.7         3.2          1.3         0.2
4           4.6         3.1          1.5         0.2
5           5.0         3.6          1.4         0.2
6           5.4         3.9          1.7         0.4
7           4.6         3.4          1.4         0.3
8           5.0         3.4          1.5         0.2
9           4.4         2.9          1.4         0.2
10          4.9         3.1          1.5         0.1

Value from data

Means and percentage are cool, but we need more!

• Detect trendings and cycles in data;

• Correlations, causation and ways to avoid what is “bad” or maximize what is “good”;

• Data science as a detective job;

• Example: why drivers sleep more on Thursday?

A lazy topologist

“Mr. Topologist, can you analyse this dataset for me?”

• Of course!

• discrete space;

• 1700 connected components;

• trivial \(H_n\) for \(n > 0\);

• call it a day;

• sleep like a baby.

Geometry in the real world

Topological Data Analysis builds bridges from:

• Topological spaces => finite datasets:

• Homology => persistent homology;

• Reeb graph => mapper graph;

• Connected components => single-linkage clustering.

Problem 1: clustering

Objective: partition a dataset into “useful” groups of points.

An analog for “connectivity” in the discrete case.

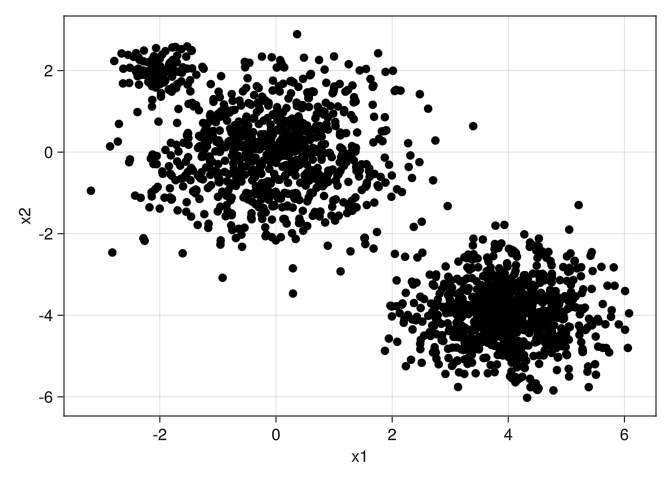

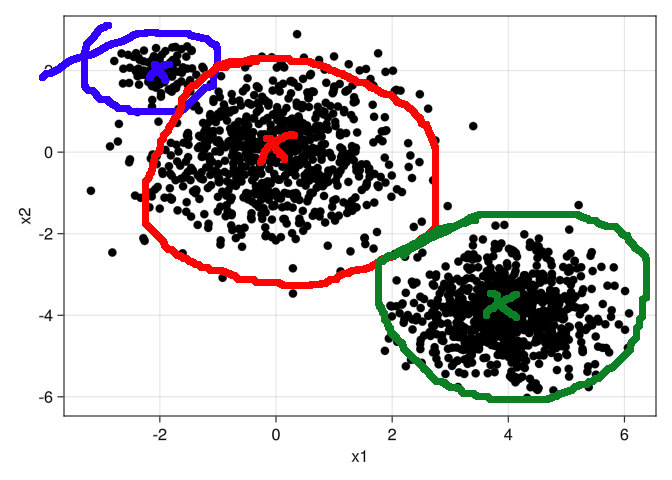

Getting started

• \(x_1\) and \(x_2\) are measurements of something (facial features, temperature and pressure, etc.);

• small error are usual;

• the “true” value is in the center;

• the “true” value is closer to the other values than “false” values.

ToMATo!

In (Chazal et al. 2011), the authors define the Topological Mode Analysis Tool, or ToMATo algorithm. The intuitive idea is the following:

ToMATo!

Find poins in the most dense regions.

Build the perimeter by a hill-climbing method.

Step 1

Calculate a density estimator

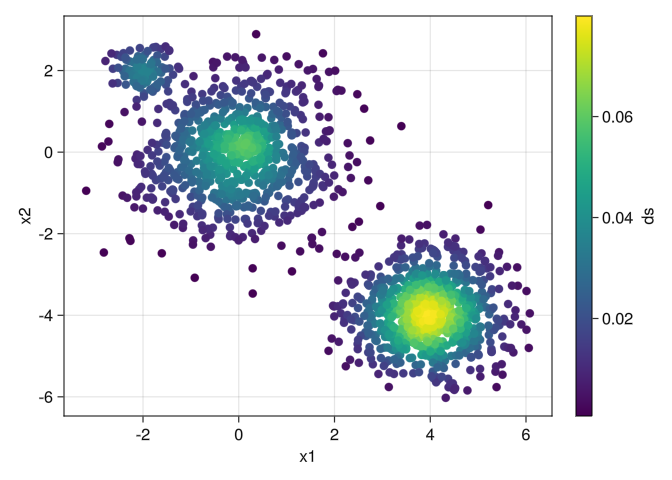

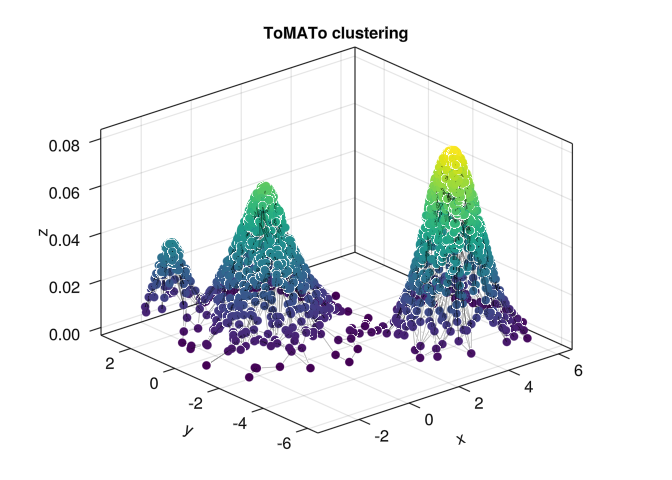

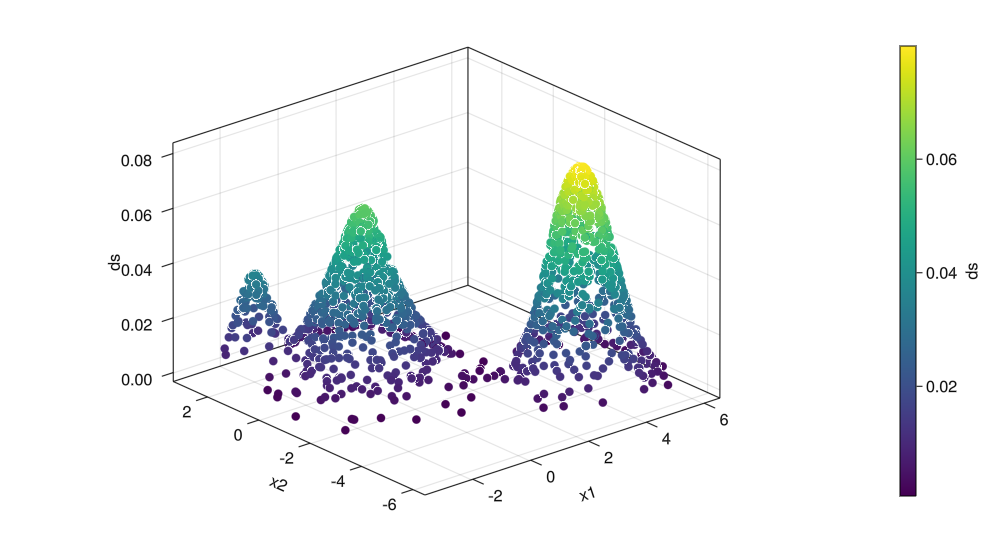

Plot the mountains

Step 2

Create a proximity graph

Step 3

Chop the mountains!

Reindex \(x_1, ..., x_n \in X\) from highest to lowest.

Start with \(x = x_1\).

If no neighbor of \(x\) is higher than \(x\), then \(x\) form a cluster \(c_1\)

otherwise

\(x\) will be assigned to the cluster of its highest neighbor.

Keep going until all \(x \in X\) is assigned to a cluster.

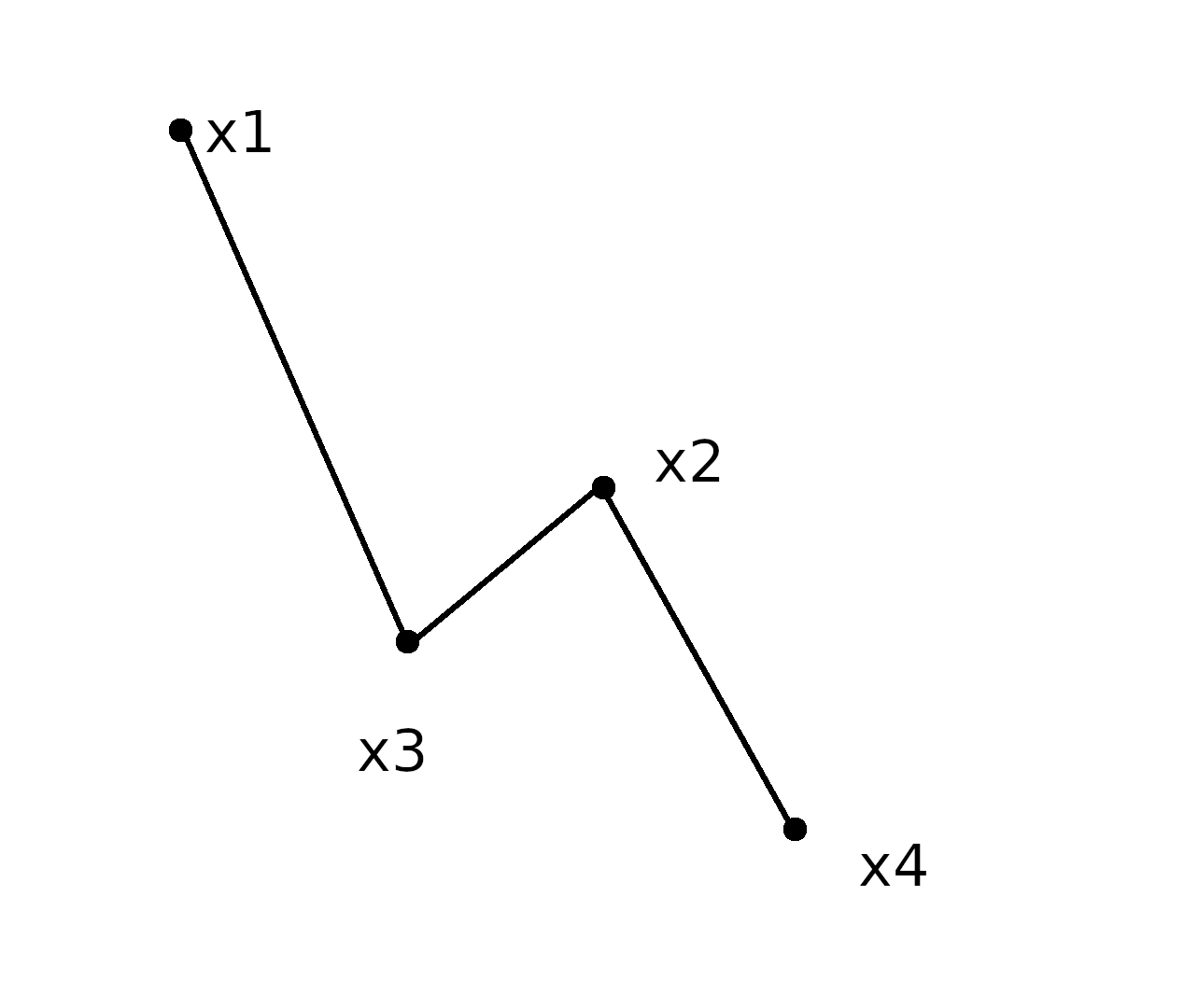

Details

Arrange index set

x = x_1

no neighbor of \(x_1\) is higher than \(x_1\), then \(x_1\) form a cluster \(c_1\)

x = x_2

no neighbor of \(x_2\) is higher than \(x_2\), then \(x_2\) form a cluster \(c_2\)

x = x_3

\(x_3\) will be assigned to the cluster of its highest neighbor, \(c_1\)

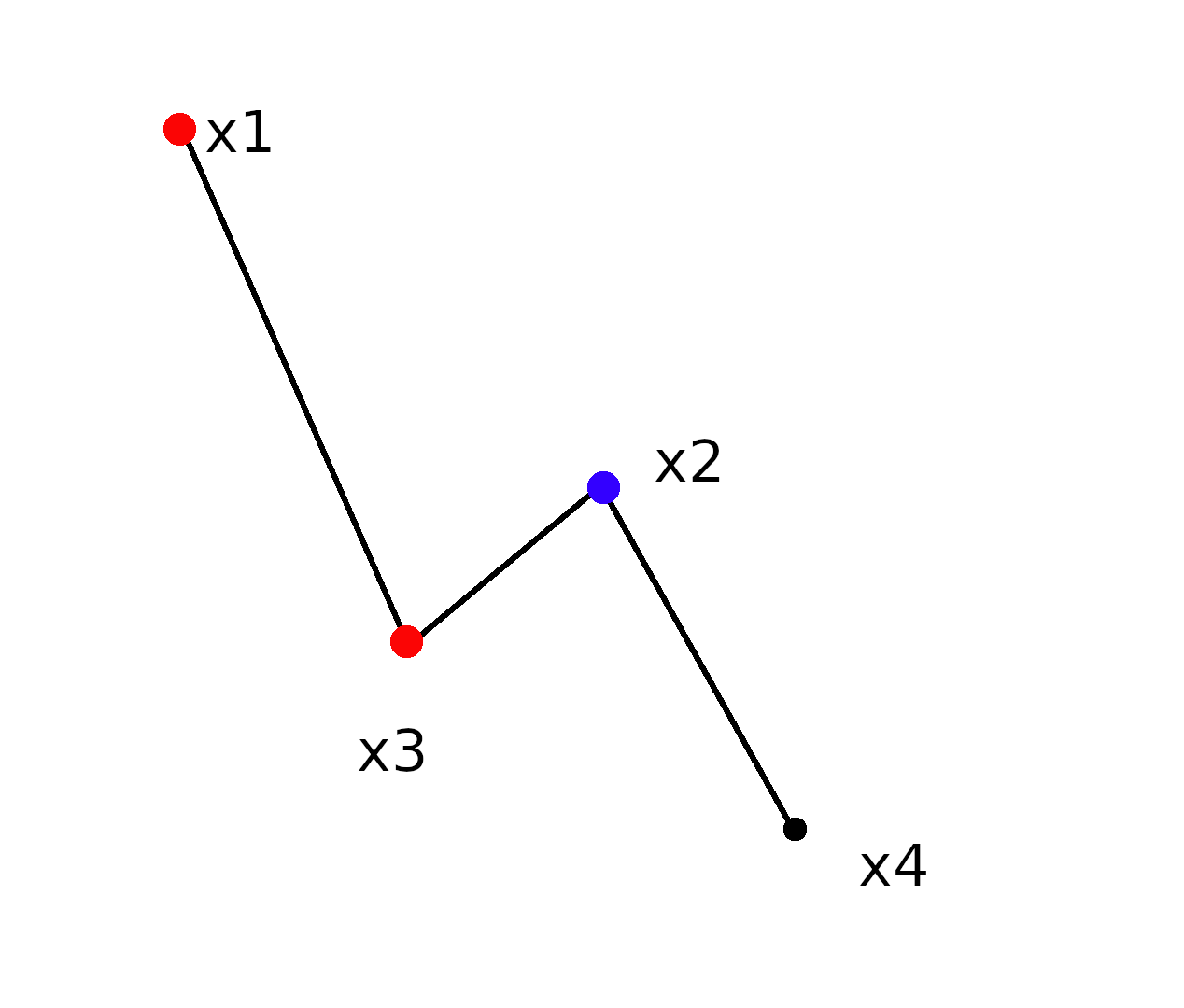

x = x_4

\(x_4\) will be assigned to the cluster of its highest neighbor, \(c_2\)

:(

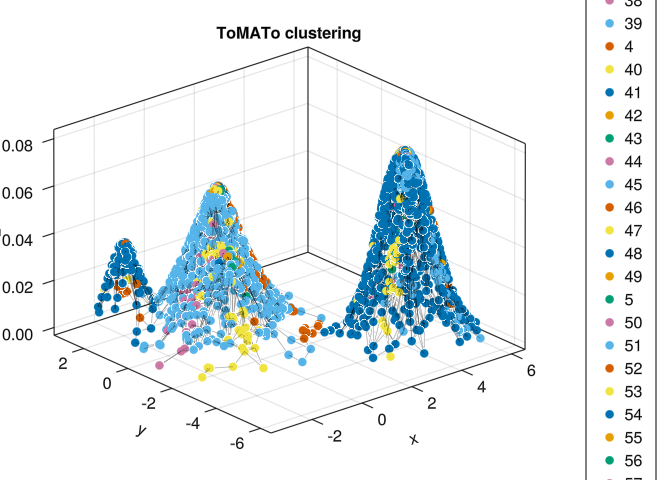

Terraforming

We had a lot of peaks that were too small to be considered as a true peak.

Add this step to the algorithm:

If a neighbor of \(x\) is a peak just a bit higher than \(x\), then merge its cluster to the one of \(x\).

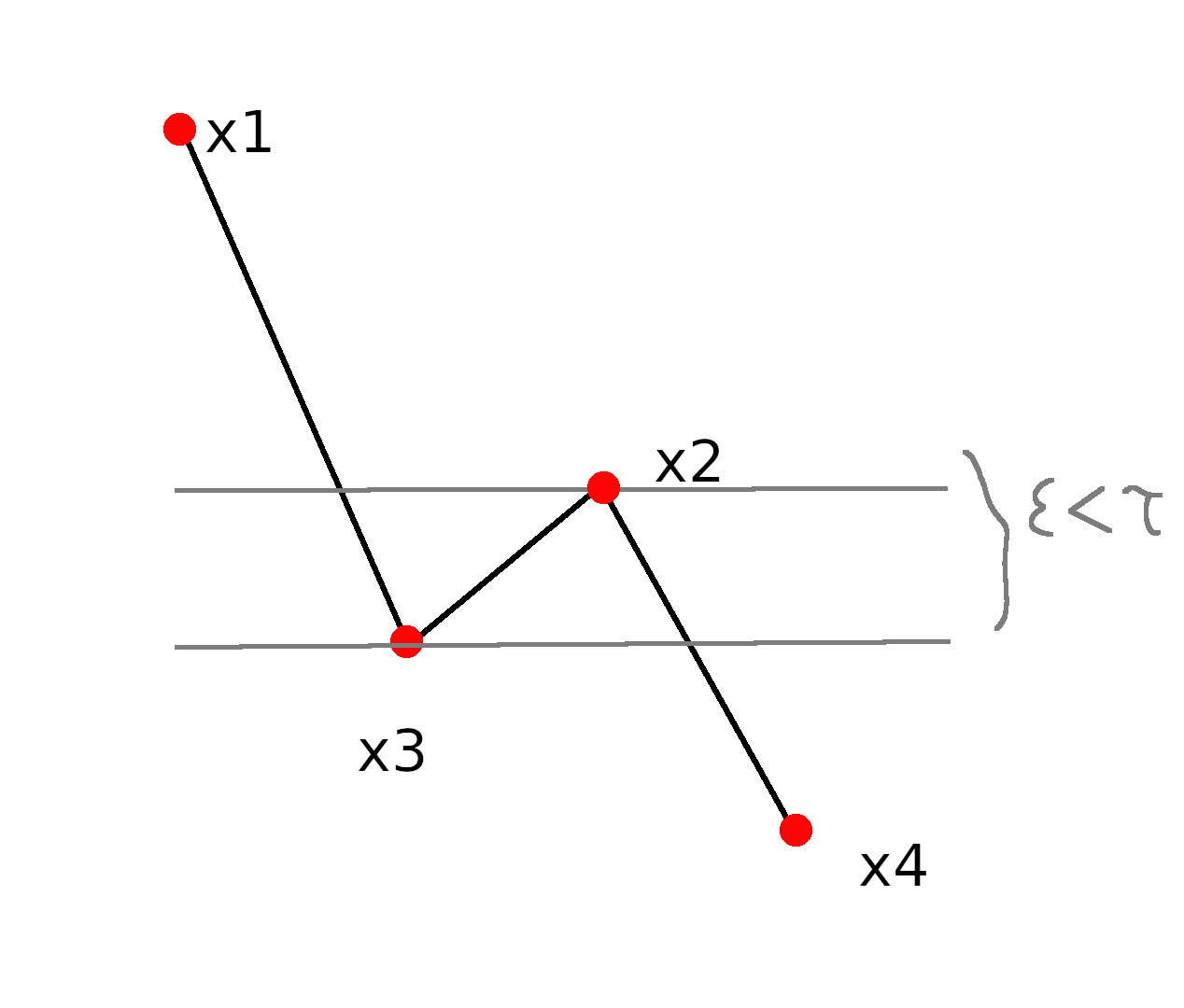

Measure

\(| \text{dens}(x_2) - \text{dens}(x_3) | < \tau;\)

Merge

\(x_2\) and \(x_4\) are assigned to \(c_1\).

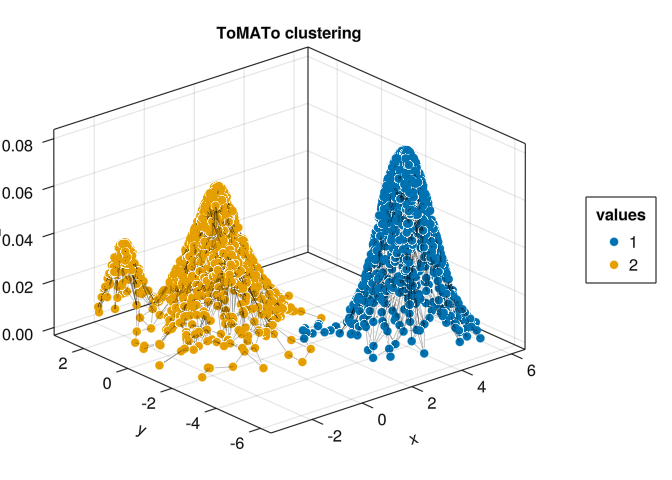

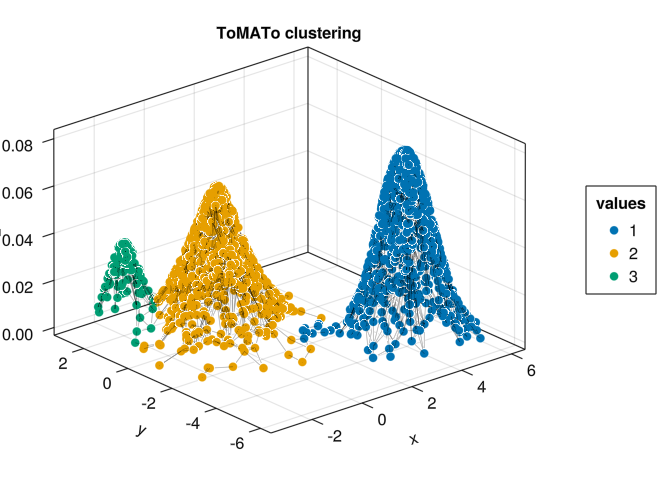

Final result with \(\tau\) = 0.02

Result with \(\tau\) = 0.04

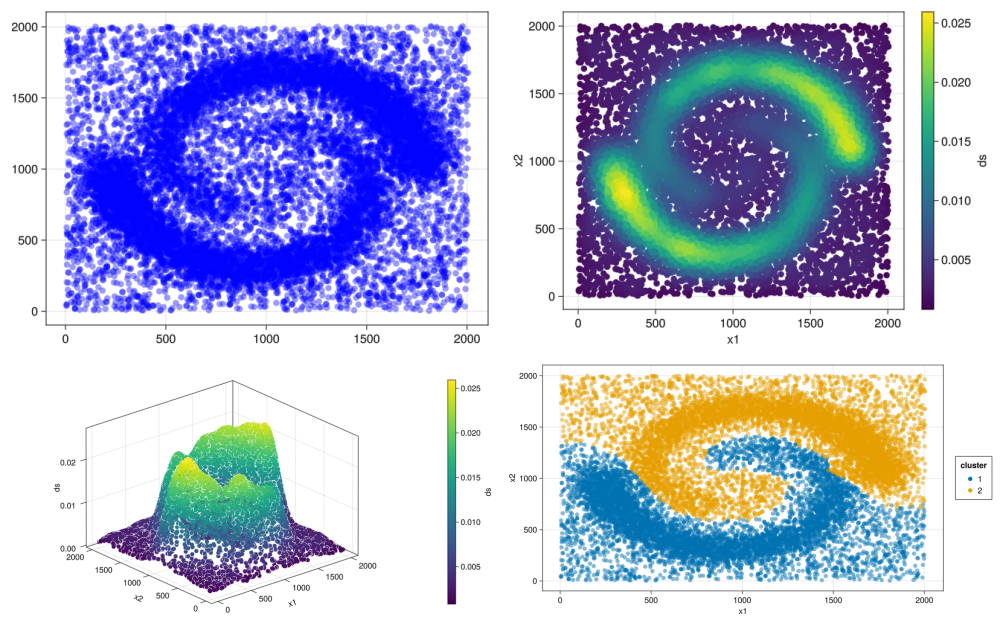

ToMATo: two spirals with noise

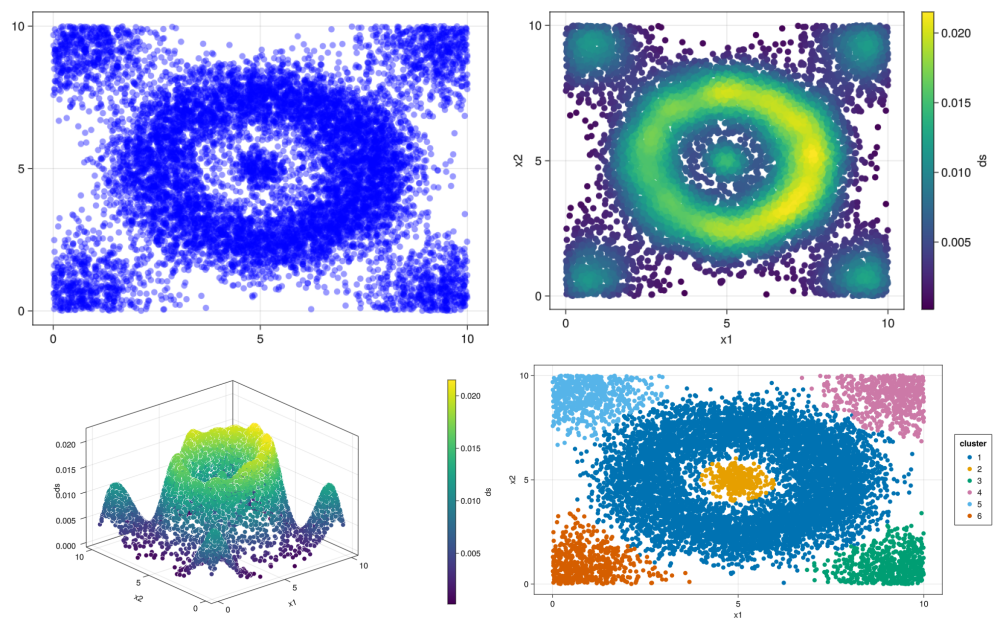

ToMATo: components with noise

Problem 2: signatures

Objective: given a complicated object \(X\), create a simpler object \(S(X)\) which can give information about \(X\).

Example: \(X\) and \(Y\) are hard to compare, but

\[ S(X) \neq S(Y) \Rightarrow X \neq Y. \]

Connected components

Clustering algorithms depend on several parameters.

Is there a more natural way to count connected components on finite sets?

From finite to infinite

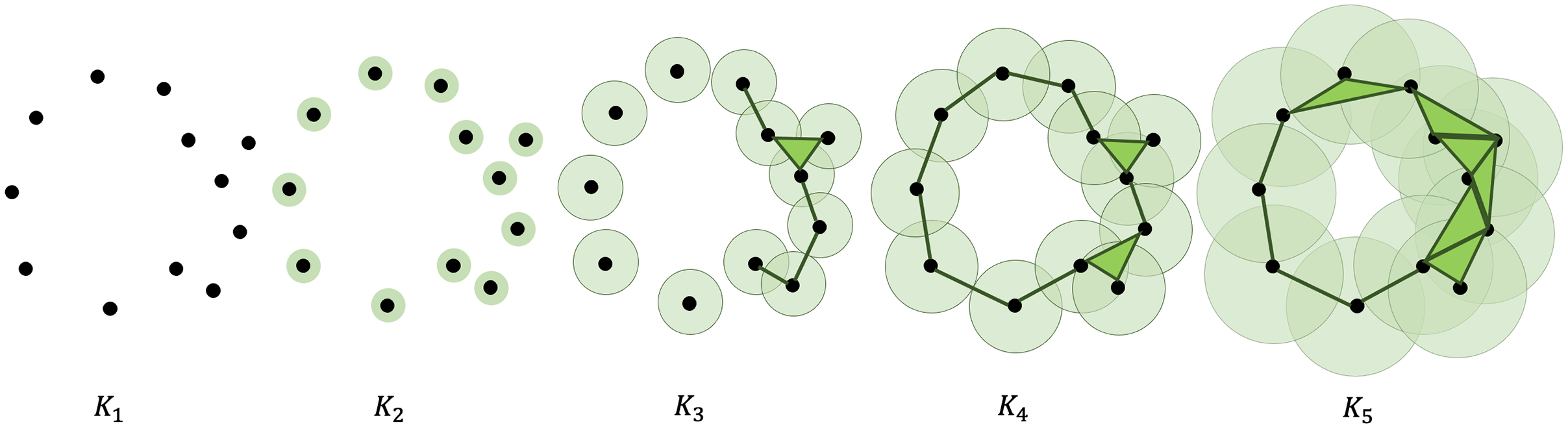

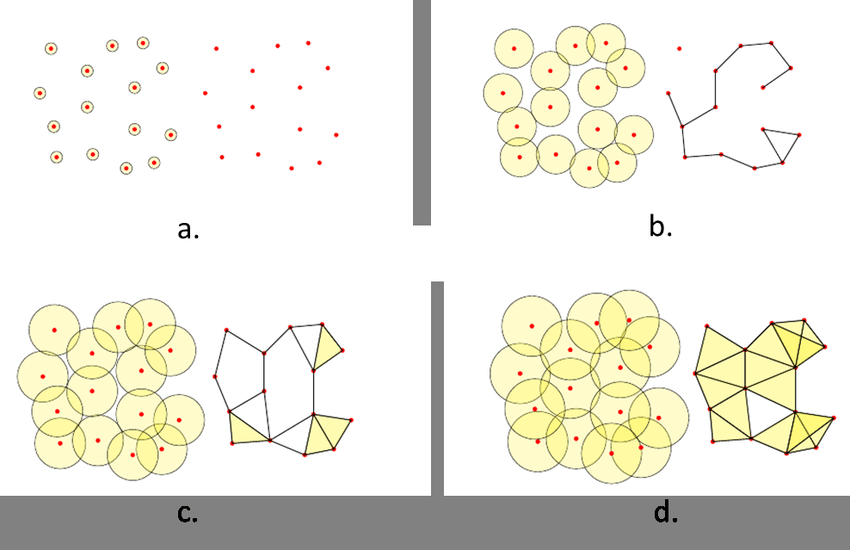

• Center a ball of radius \(\epsilon\) in each point of \(X\) and make \(\epsilon\) vary.

• \(X_\epsilon :=\) the union of these balls; \(K_\epsilon :=\) the nerve of \(X_\epsilon\).

• Count the connected components of \(X_\epsilon\) or \(K_\epsilon\) for each \(\epsilon\).

Vietoris-Rips complex

In the previous construction, \(K_\epsilon\) is called the Vietoris-Rips complex of \(X\) at parameter \(\epsilon\).

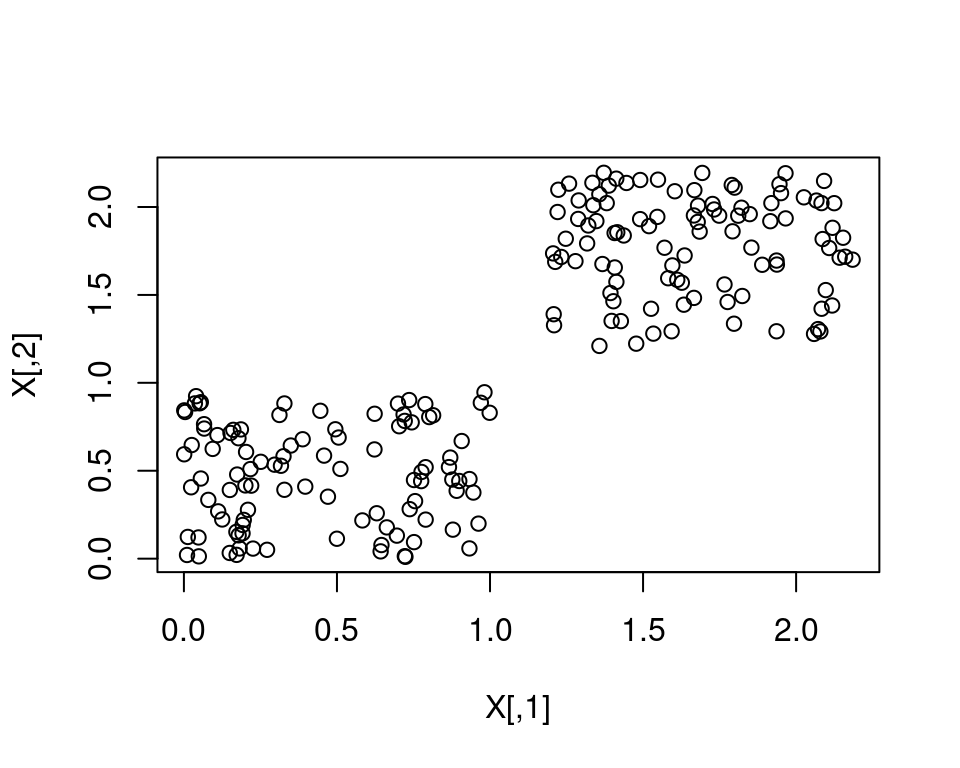

Dendrograms

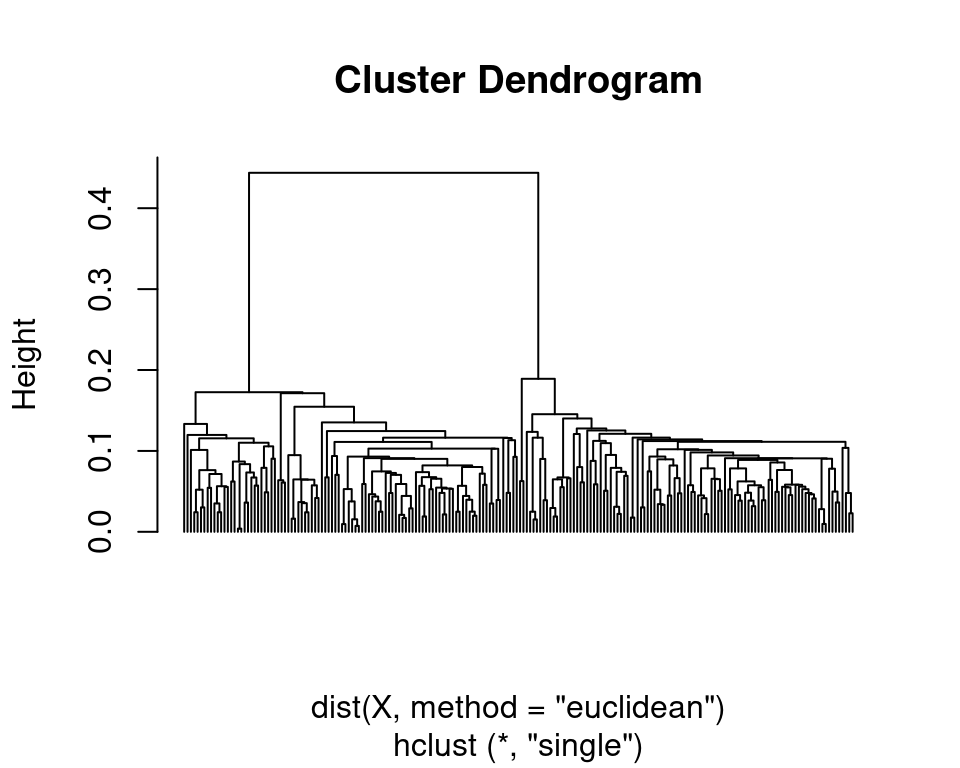

A dendrogram represents the birth and death of each connected component. It is agglomerative.

Enters topology

• Connected components are measured by the \(H_0\) functor.

• Dendrograms keep track of \(H_0\) generators.

• Can we use \(H_n\) instead of \(H_0\)???????????????

Persistent homology

Given a family of simplicial complexes

\[ K_0 \hookrightarrow K_1 \hookrightarrow \cdots \hookrightarrow K_n \]

apply homology \(H_p\) over a field \(\mathbb{K}\)

\[ H_p(K_0) \rightarrow H_p(K_1) \rightarrow \cdots \rightarrow H_p(K_n) \]

to obtain a sequence of vector spaces and linear maps, called a persistence module.

Barcodes

A persistence module \(\mathbb{V}\) can be decomposed as a sum of interval modules, which gives us a multiset of intervals called barcode

\[ \text{dgm}(\mathbb{V}) = \{[b, d); \; (b, d) \in A\}. \]

Each interval \([b, d) \in \text{dgm}(\mathbb{V})\) can be seem as a generator of \(H_p\) (ie. a \(p\)-dimensional hole) that was “born” at \(K_b\) and “died” at \(K_d\).

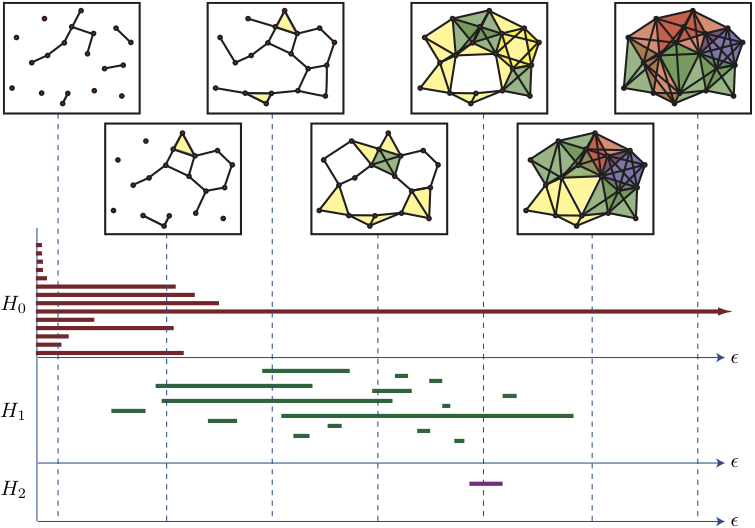

Birth and death of “holes”

Stability

Small changes in \(X\) will change just a little of the barcodes.

Theorem: given \(X\) and \(Y\) finite metric spaces,

\[ d_b(\text{dgm}(X), \text{dgm}(Y)) \leq d_{GH}(X, Y). \]

Thus:

\[ d_b(\text{dgm}(X), \text{dgm}(Y)) \; \text{is big} \Rightarrow \\ \text{$X$ and $Y$ are very different}. \]

The complex factory

There are several way to build sequences of complex:

• Vietoris-Rips complex;

• Čech complex;

• Alpha complex;

• Sub-level or super-level filtration.

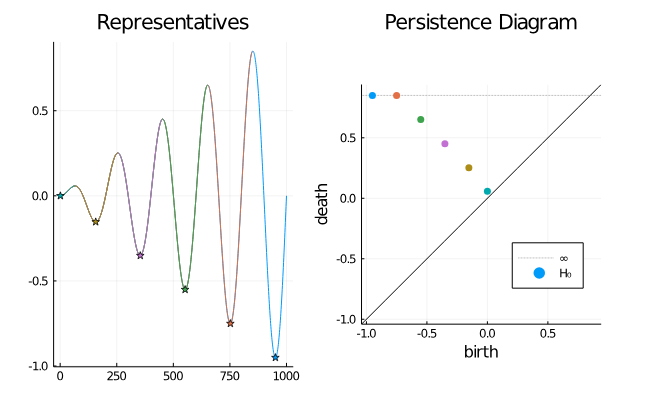

Sublevel filtration

Given \(f: X \to \mathbb{R}\), consider for any \(\epsilon \in \mathbb{R}\) the inverse image \[ X_\epsilon = f^{-1}((-\infty, \epsilon]) \] and proceed to calculate its persistent homology.

Source: (Čufar 2022)

The magic of vectors

Machine learning algorithms need vectors (or matrices) of a fixed size as input.

So, in order to use barcodes in machine learning, we need to vectorize them!

From barcodes to matrices

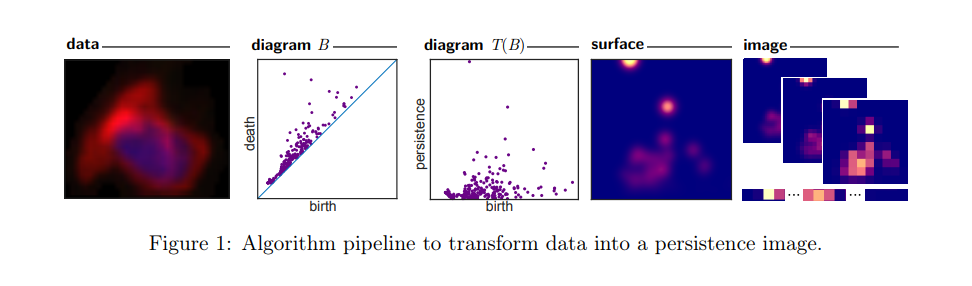

One successful construction (Adams et al. 2017) is the persistence image. The idea is the following:

• Plot the persistence diagram;

• Plot gaussians around each point;

• Pixelate them.

Example

Using persistence homology to classify hand-written digits (see (Vituri 2024) for details).

Step 1

Calculate an excentricity estimator

Step 2

Do superlevel filtration

Step 3

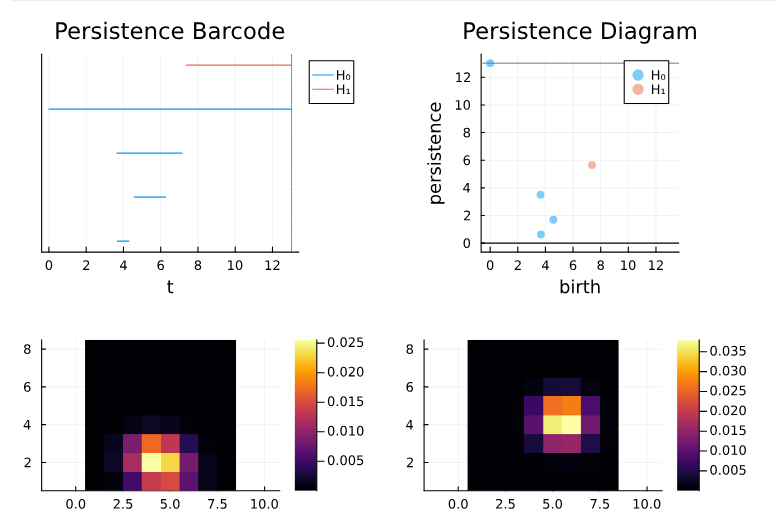

Calculate the barcode and persistence images of each dimension

Step 4

What do we do with all these matrices?????????????

Enters machine learning!

Step 4 (magic)

Create a neural network that will take the persistence images as input.

Let it learn by itself!

Neural networks

• Local transformation of a space into classes;

• Tries to maximize the separation of these classes.

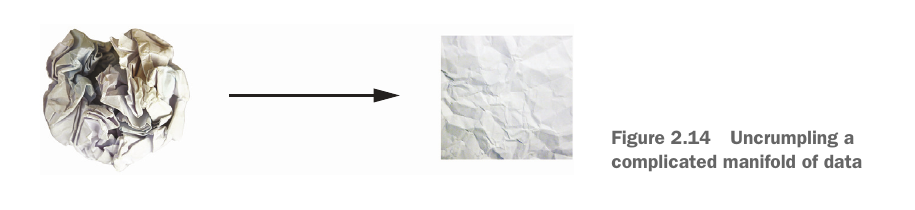

“Crumple together two sheets of paper into a small ball. That crumpled paper ball is your input data, and each sheet of paper is a class of data in a classification problem.” (Francois Chollet 2022)

Step 5

How good was our neural network?

After learning with 10.000 persistence images, we got an accuracy of

71%

which is pretty bad…

:(

The perils of isometry

Isometric spaces will have the same barcodes using the density function!

• 6 and 9 are isometric;

• 2 and 5 are very similar.

Improving

To get a better result, give more data to the neural network!

• Create the sub-level filtration of the digits, using the projection on the x and y axis;

• Calculate the barcodes and persistence images;

• Concatenate all these persistence images in a big vector;

• Feed the neural network.

Results

Now our accuracy rose to

95.1%

which seems pretty good for such naive approach!

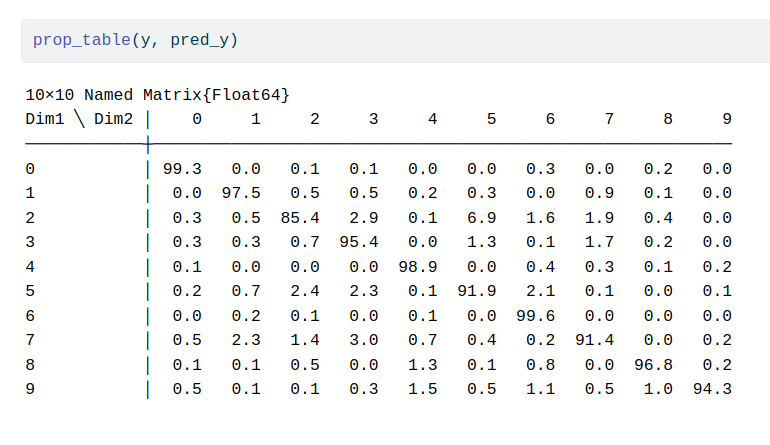

The confusion matrix of our neural network classifier. Source (Vituri 2024)

The limits of topology

Plotting a sample of digits that our algorithm got wrong, we can see many ugly digits.

Problem 3: dimensionality reduction

Objective: See what can’t be seen!

Given a high-dimensional dataset \(X\), how can we visualize it while keeping some of its structure?

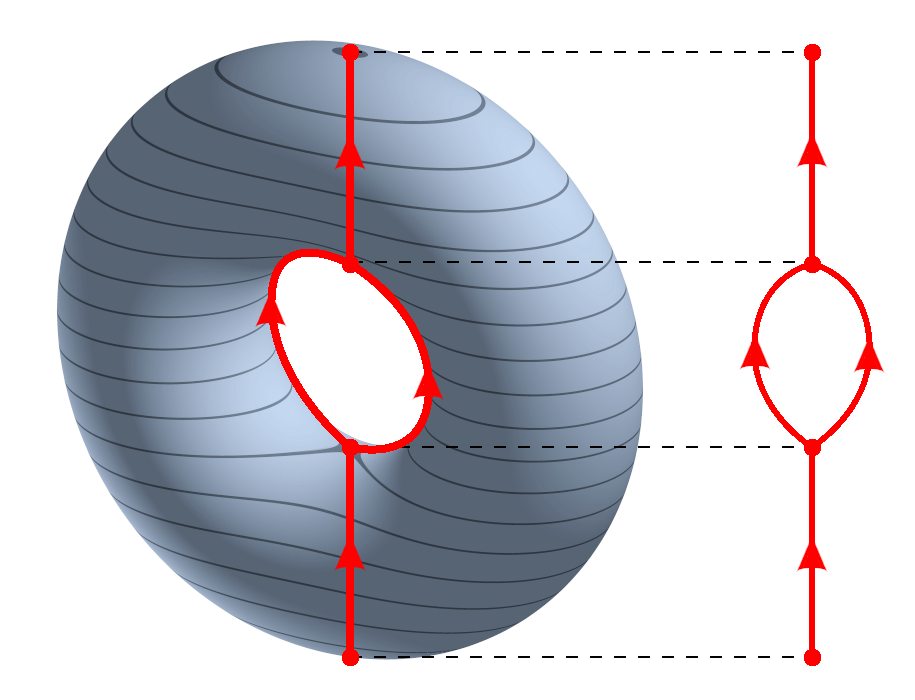

Reeb graph

Given a topological space \(X\) and a map \(f: X \to \mathbb{R}\), define \(\sim\) on \(X\) such that

\[ p \sim q \Leftrightarrow \text{$p, q \in f^{-1}(c)$} \\ \text{for some $c \in \mathbb{R}$.} \]

The Reeb Graph of \((X, f)\) is the quotient \(X / \sim\)

From infinite to finite

To adapt the Reeb graph to the finite case, we need to change:

• \(X\) topological space => \((X, d)\) finite metric space;
• \(f: X \to \mathbb{R}\) continuous => \(f: X \to \mathbb{R}\) any function;
• inverse images of points of \(\mathbb{R}\) => inverse images of intervals of \(\mathbb{R}\);
• connected components of \(X\) => clusters of \(X\).

The Mapper graph

1. Define \(f: X \to \mathbb{R}\);

The Mapper graph

1. Define \(f: X \to \mathbb{R}\);

2. Choose a interval covering of \(f(X)\);

The Mapper graph

1. Define \(f: X \to \mathbb{R}\);

2. Choose a interval covering of \(f(X)\);

3. Apply a clustering on the inverse image of each interval;

The Mapper graph

1. Define \(f: X \to \mathbb{R}\);

2. Choose a interval covering of \(f(X)\);

3. Apply a clustering on the inverse image of each interval;

4. Apply the nerve construction on the sets of clusters.

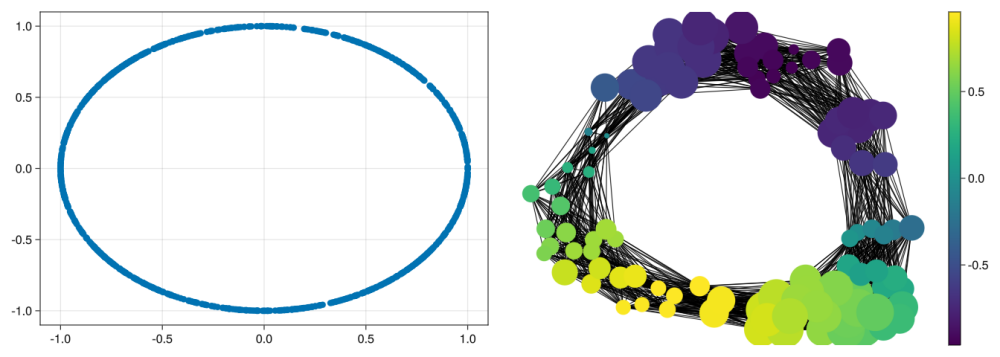

A humble example

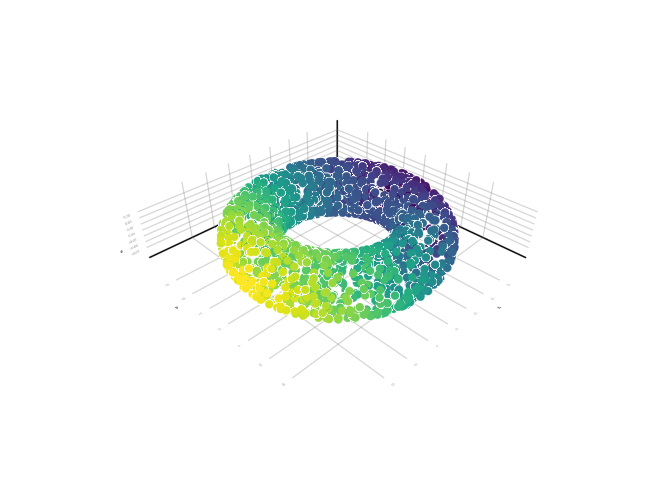

\(X\) = torus, \(f\) = projection, colored by \(f\).

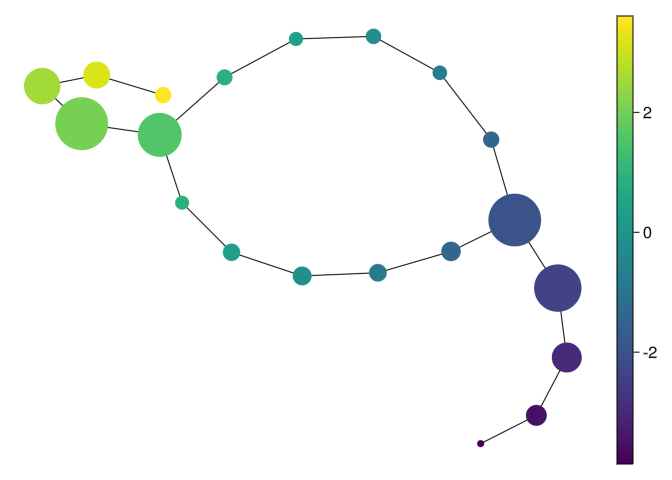

The mapper graph.

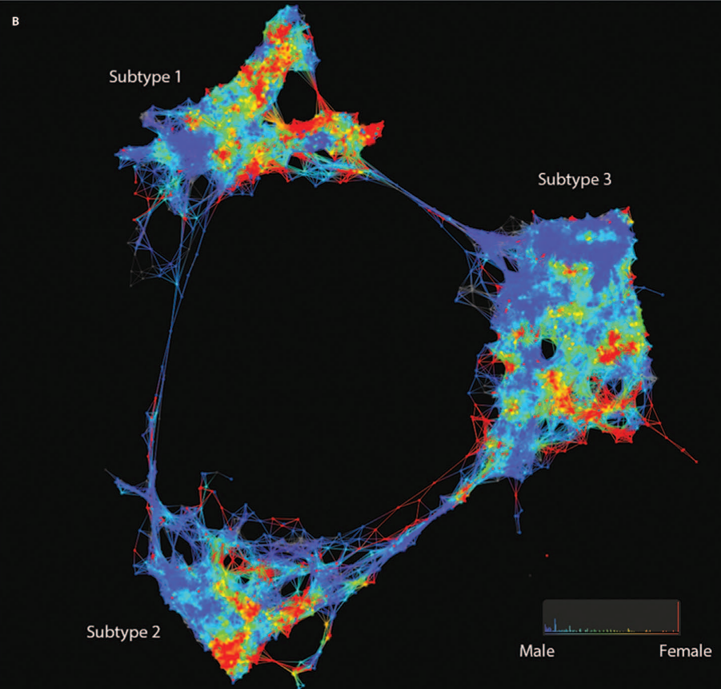

Application

Identifying type-2 diabetes.

Source: (Li et al. 2015)

Application two

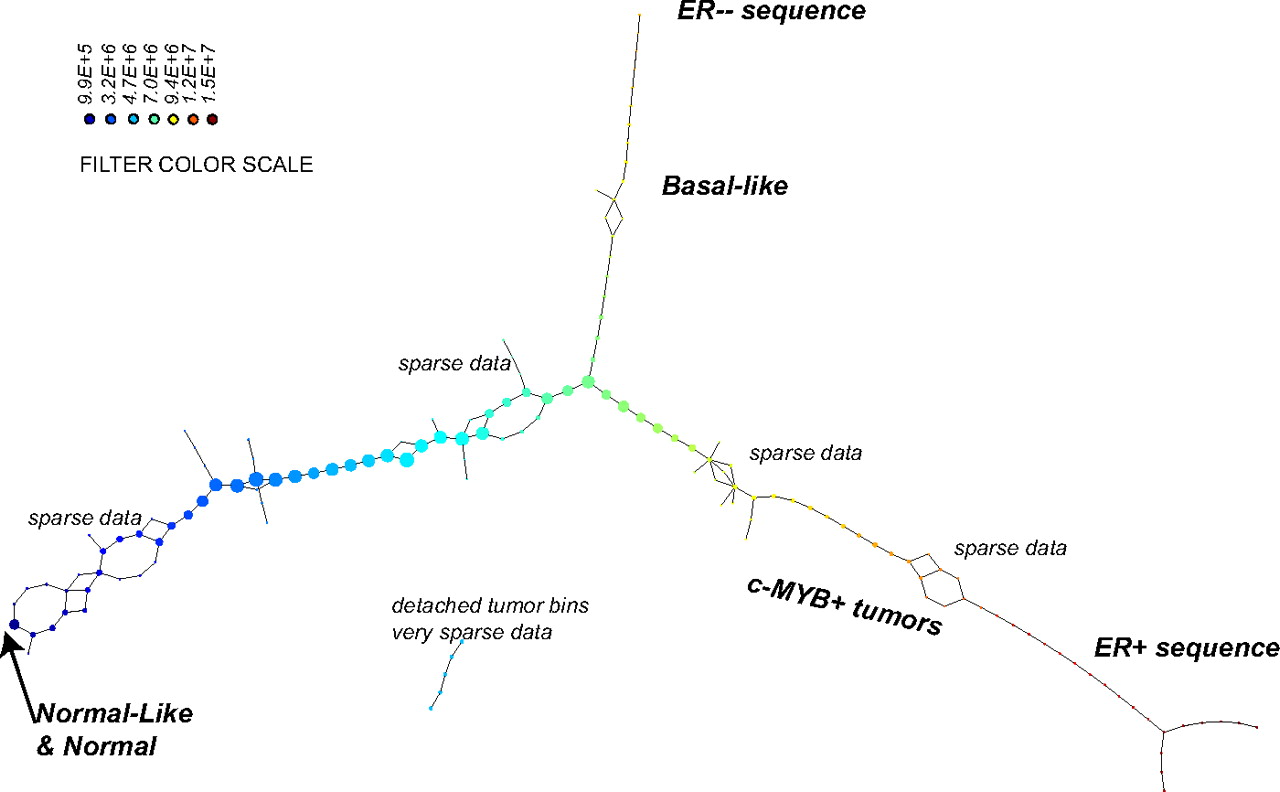

Identifying of subgroup of breast cancer with excellent survival.

Source: (Nicolau, Levine, and Carlsson 2011)

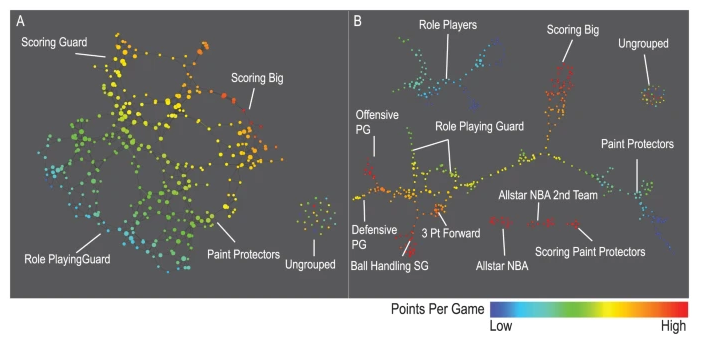

One more application

The mapper identified more distinct styles of playing basketball than the traditional 5.

Two applications of the mapper algorithm using different coverings. Source: (Lum et al. 2013)

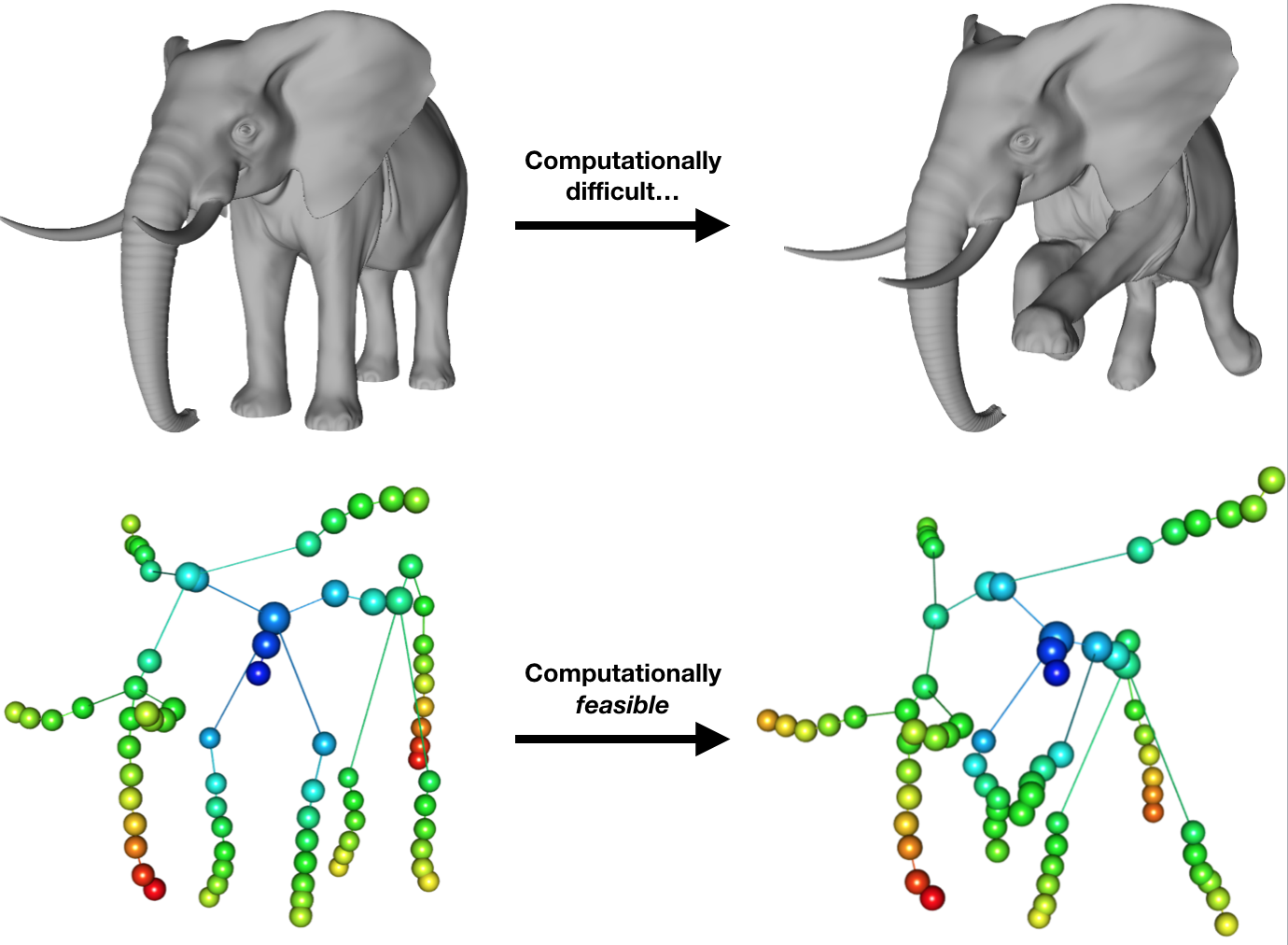

Distances on mapper

We can also use the mapper as a reduction of a space \(X\).

Source: (Piekenbrock 2020)

The general mapper

Looking from above, the mapper algorithm consists of two steps:

1. (covering step) Given a metric space \((X, d)\), create a covering \(C\) of \(X\);
2. (nerve step) Using \(C\) as vertex set, create a graph.

In the classical mapper context, \(C\) is generated using the clustering of pre-images of a function \(f: X \to \mathbb{R}\).

Ball mapper

The ball mapper algorithm (Dłotko 2019) in short:

1. Cover \(X\) with balls of radius \(\epsilon\);
2. Calculate the nerve.

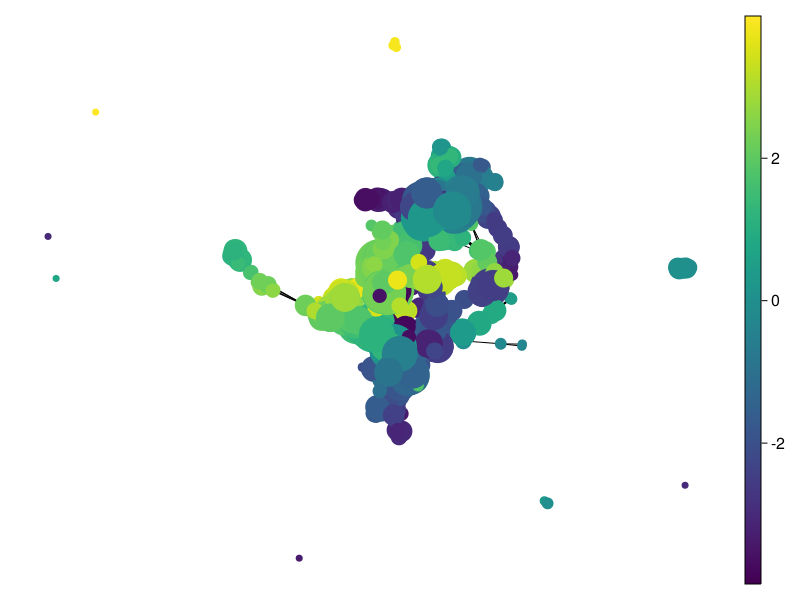

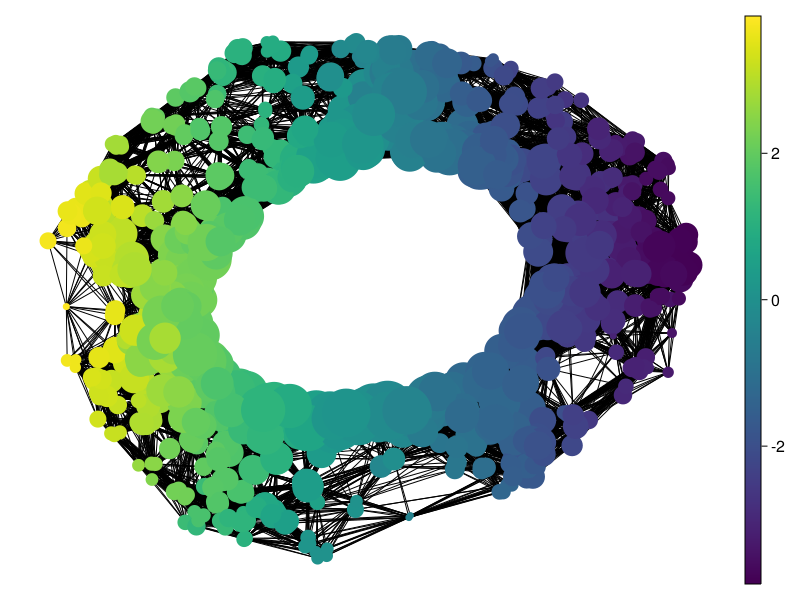

Ball mapper of torus, \(\epsilon = 0.5\)

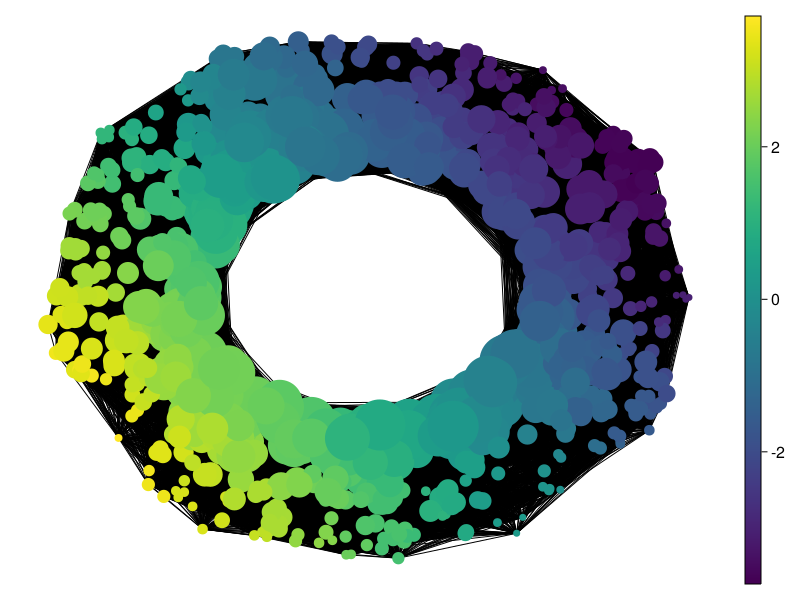

Ball mapper of torus, \(\epsilon = 0.8\)

Ball mapper of torus, \(\epsilon = 1.3\)

Closing remarks

Topology is not enough

TDA should be one more tool in your data analysis arsenal, not the only one.

Study TDA in the context of other algorithms which are already popular.

Advice from an old man

• Study topology;

• Study data analysis;

• Learn to code! Julia, Python or R to start.

• Most important: combine the three above.

Apply TDA!

…

……………….

Obrigado!!

References

Adams, Henry, Tegan Emerson, Michael Kirby, Rachel Neville, Chris Peterson, Patrick Shipman, Sofya Chepushtanova, Eric Hanson, Francis Motta, and Lori Ziegelmeier. 2017. “Persistence Images: A Stable Vector Representation of Persistent Homology.” Journal of Machine Learning Research 18.

Chazal, Frédéric, Leonidas Guibas, Steve Oudot, and Primoz Skraba. 2011. “Persistence-Based Clustering in Riemannian Manifolds.” Journal of the ACM 60 (June). https://doi.org/10.1145/1998196.1998212.

Čufar, Matija. 2022. “Ripserer.jl: Efficient Computation of Persistent Homology.” https://github.com/mtsch/Ripserer.jl.

Dłotko, Paweł. 2019. “Ball Mapper: A Shape Summary for Topological Data Analysis.” arXiv Preprint arXiv:1901.07410.

Francois Chollet, J. J. Allaire. 2022. Deep Learning with r.

Li, Li, Wei-Yi Cheng, Benjamin S Glicksberg, Omri Gottesman, Ronald Tamler, Rong Chen, Erwin P Bottinger, and Joel T Dudley. 2015. “Identification of Type 2 Diabetes Subgroups Through Topological Analysis of Patient Similarity.” Science Translational Medicine 7 (311): 311ra174–74.

Lum, Pek Y, Gurjeet Singh, Alan Lehman, Tigran Ishkanov, Mikael Vejdemo-Johansson, Muthu Alagappan, John Carlsson, and Gunnar Carlsson. 2013. “Extracting Insights from the Shape of Complex Data Using Topology.” Scientific Reports 3 (1): 1236.

Nicolau, Monica, Arnold J. Levine, and Gunnar Carlsson. 2011. “Topology Based Data Analysis Identifies a Subgroup of Breast Cancers with a Unique Mutational Profile and Excellent Survival.” Proceedings of the National Academy of Sciences 108 (17): 7265–70. https://doi.org/10.1073/pnas.1102826108.

Piekenbrock, Matt. 2020. “Mapper.” https://peekxc.github.io/Mapper/.

Vituri, Guilherme. 2024. Topological Data Analysis with Julia. https://vituri.github.io/TDA_with_julia/.
